Soil Compactor*
Description

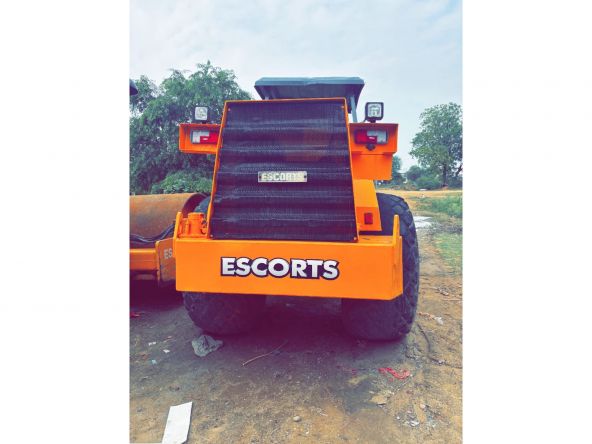

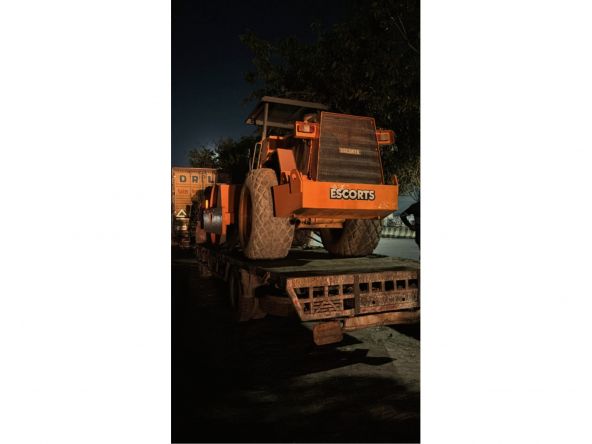

Escort EC 5250 PLUS Soil Compactor – Key Highlights
Engine & Power
-
Powered by KOEL 4R1190TA1 engine
-
Delivers 110 HP @ 2200 RPM
-
Complies with CEV Stage-IV emission norms for reduced environmental impact
Compaction Performance
-
High amplitude: 1.30–1.90 mm
-
Low amplitude: 0.6–0.8 mm
-
High frequency: 42 Hz
-
Low frequency: 33 Hz
-
Centrifugal force (high freq): 27,708 kg
-
Centrifugal force (low freq): 18,898 kg
-
Drum width: 2130 mm
-
Drum diameter: 1523–1739 mm
-
Drum thickness: 25 mm
Transmission & Mobility
-
Max travel speed: 23 km/h
-
Gradeability: 34–45% (excellent for slopes and uneven terrain)
-
Turning radius: 3370–5500 mm
-
Oscillation angle: 10°
Structural & Operational Specs
-
Operating weight: 11,430–13,030 kg
-
Overall length: 5550 mm
-
Overall width: 2290 mm
-
Overall height: 3045–3095 mm
-
Ground clearance: 435–485 mm
-
Wheelbase: 2880 mm
Tank Capacities
-
Fuel tank: 265 liters
-
Hydraulic tank: 80 liters
Safety & Usability
-
Hydrostatic brakes: Spring-applied, hydraulically released (both service and parking)
-
Battery cut-off switch: Prevents battery drainage
-
Coolant temperature gauge: Real-time engine monitoring
-
Ergonomic seat: Designed for all-round visibility
Applications
-
Ideal for:
-
Road base compaction
-
Railway ballast stabilization
-
Sidewalk and bicycle path paving
-
Sports court construction
-
Gravel, asphalt, concrete, and soil compaction
-
Shop Policies
Payment Policy
100% advance payment
Delivery Policy
Delivery Charges and State Taxes Extra
Refund Policy
Cancellation and Refund as per website policy
Additional comments from Vendor
The machine will be provided by our site but the food & accommodation for machine operator will be provided by contractor. Fuel & Delivery charges for delivery will be borne by Buyer. Returning Delivery charges including fuel will also be borne by Buyer.
