Soil Compactor*
Description

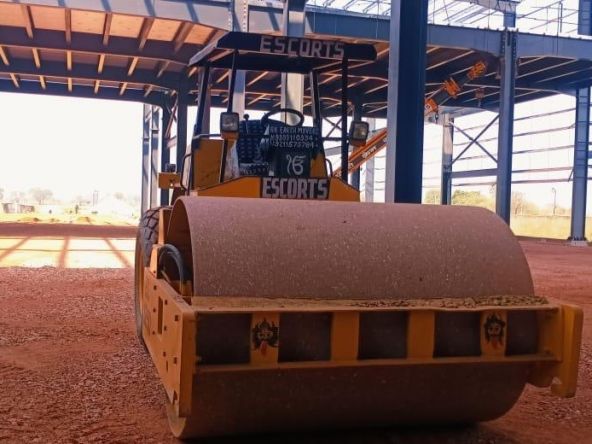

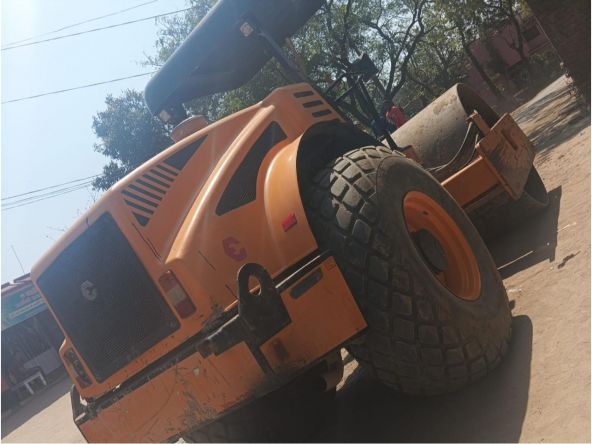

Escort Kubota EC 5250 PLUS Soil Compactor – Key Highlights
Engine & Performance
-
Powered by KOEL 4R1190TA1 engine
-
Delivers 110 HP @ 2200 RPM
-
Complies with CEV Stage-IV emission norms
-
Excellent gradeability of 34–45% for steep terrain
Fuel & Hydraulic Capacity
-
Fuel tank capacity: 265 liters – supports long operations without frequent refueling
-
Hydraulic oil tank: 80 liters
Dimensions & Weight
-
Operating weight: 11,430–13,030 kg
-
Overall length: 5,550 mm
-
Overall width: 2,290 mm
-
Overall height: 3,045–3,095 mm
-
Ground clearance: 435–485 mm
-
Wheelbase: 2,880 mm
Drum Specifications
-
Drum width: 2,130 mm
-
Drum diameter: 1,523–1,739 mm
-
Drum thickness: 25 mm
-
Front & rear static linear load: 30.9–31.9 kg/cm
Vibration System
-
High amplitude: 1.30–1.90 mm
-
Low amplitude: 0.6–0.8 mm
-
High frequency: 42 Hz
-
Low frequency: 33 Hz
-
Centrifugal force at high frequency: 27,708 kg
-
Centrifugal force at low frequency: 18,898 kg
Braking & Steering
-
Service brake: Hydrostatic, spring-applied, hydraulically released
-
Parking brake: Same as service brake
-
Turning radius: 3,370–5,500 mm
-
Axle oscillation angle: 10°
Special Features
-
Integrated coolant temperature gauge for engine monitoring
-
Battery cut-off switch for safety and battery preservation
-
Ergonomic seat for all-round visibility
-
Designed for minimum operating cost and fuel efficiency
Applications
-
Ideal for:
-
Soil, gravel, asphalt, and concrete compaction
-
Sidewalks, bicycle paths, and sports courts
-
Railway ballast and base layer compaction
-
Large-scale infrastructure projects like highways and airports
-
