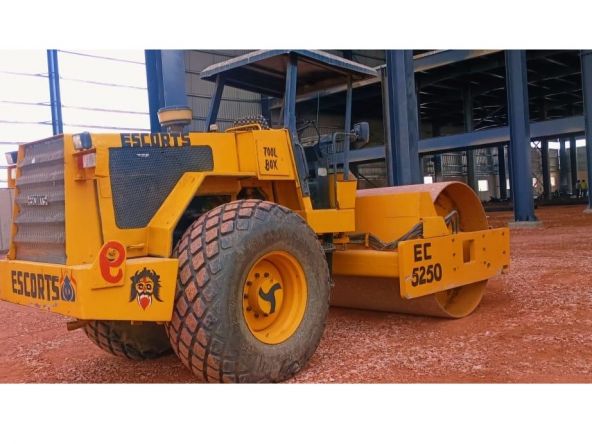

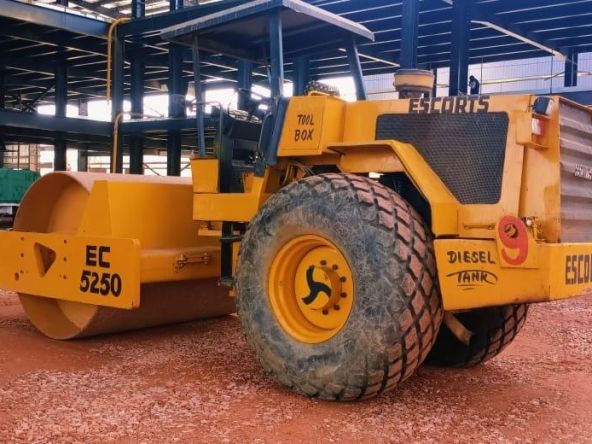

Soil Compactor*
Description
Key Features & Capabilities
-
Engine Power: Equipped with a robust 110 HP KOEL 4R1190TA1 engine delivering high performance at 2200 rpm.
-
Emission Compliance: Meets CEV Stage-IV norms, ensuring reduced environmental impact.
-
Operating Weight: Ranges between 11,430 kg to 13,030 kg, offering excellent compaction force.
-
Gradeability: Handles slopes up to 45%, making it suitable for uneven terrain.
-
Fuel Efficiency: Comes with a 265-liter fuel tank, allowing extended operation without frequent refueling.
Dimensions & Design
-
Overall Width: 2,290 mm, enabling efficient maneuverability in tight spaces.
-
Drum Width: 2,130 mm with a thickness of 25 mm, ensuring deep and uniform compaction.
-
Ground Clearance: Between 435 mm to 485 mm, suitable for rugged job sites.
-
Turning Radius: Between 3,370 mm to 5,500 mm, offering flexible steering control.
Performance & Vibration System
-
High Amplitude: 1.30–1.90 mm, ideal for deep soil compaction.
-
Low Amplitude: 0.6–0.8 mm, suitable for surface finishing.
-
Frequency Range: 33 Hz to 42 Hz, adaptable to different soil types.
-
Centrifugal Force: Up to 27,708 kg per drum, ensuring powerful impact.
Operational & Safety Features
-
Hydrostatic Braking System: Both service and parking brakes are spring-applied and hydraulically released.
-
Battery Cut-Off Switch: Prevents battery drainage and enhances safety.
-
Coolant Temperature Gauge: Offers real-time engine monitoring for optimal performance.
Applications
-
Ideal for road construction, railway ballast compaction, sports courts, sidewalks, and base layer preparation.
-
Performs well in gravel, asphalt, concrete, and soil compaction tasks.
Shop Policies
Payment Policy
100% advance payment
Delivery Policy
Delivery Charges and State Taxes Extra
Refund Policy
Cancellation and Refund as per website policy
Additional comments from Vendor
The machine will be provided by our site but the food & accommodation for machine operator will be provided by contractor. Fuel & Delivery charges for delivery will be borne by Buyer. Returning Delivery charges including fuel will also be borne by Buyer.
