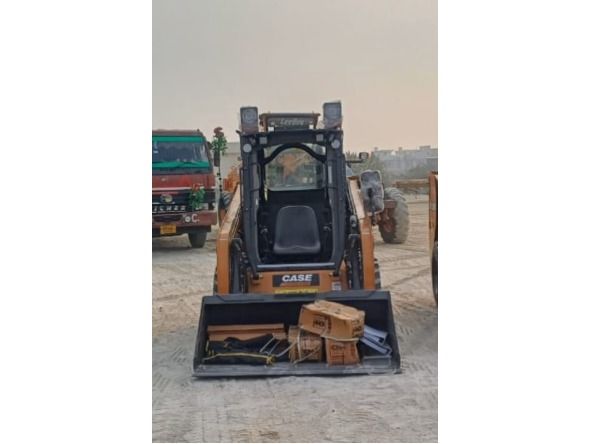

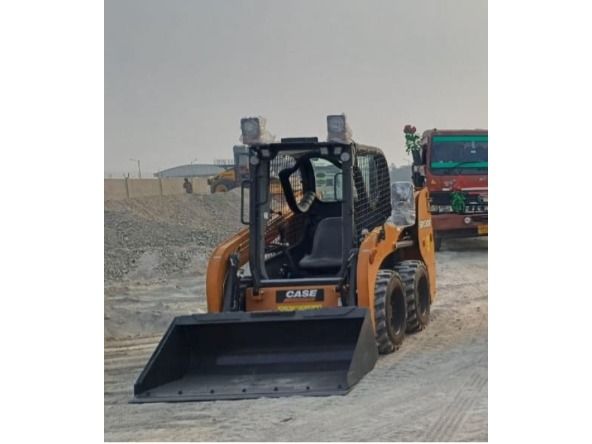

Skid loader*
Description
Engine & Power
-
Engine Model: ISM N844T/M3, 4-cylinder diesel
-
Gross Power: 46 HP @ 2900 rpm
-
Net Power: 43 HP
-
Displacement: 2.0 liters (122 cu in)
-
Cooling System: Liquid-cooled
-
Emission Compliance: Tier 4 Final
Performance & Lifting
-
Rated Operating Capacity: 590 kg (1,300 lbs)
-
Tipping Load: 1,179 kg (2,600 lbs)
-
Lift Type: Radial lift — ideal for digging and pushing
-
Breakout Force:
-
Lift Cylinder: 4,275 lbs
-
Bucket Cylinder: 4,160 lbs
-
Hydraulics
-
Standard Flow: 15.6 GPM (59 L/min)
-
Relief Pressure: 3,000 psi
-
Hydraulic System: Gear pump with open center valve
-
Auxiliary Hydraulics: Standard with flat-face couplers
Dimensions
-
Operating Height (with bucket): 3,860 mm
-
Bucket Hinge Pin Height: 2,845 mm
-
Overall Width (over tires): 1,518 mm
-
Length with Bucket: 3,297 mm
-
Ground Clearance: 178 mm
-
Wheelbase: 941 mm
-
Dump Reach at Max Height: 470 mm
Build & Weight
-
Operating Weight: 2,270–2,344 kg (5,000–5,170 lbs)
-
Fuel Tank Capacity: 60.5 liters
-
Hydraulic Reservoir: 15 liters
-
Chain Tanks (each side): 6.3 liters
Cab & Operator Comfort
-
ROPS/FOPS Certified Cab with side screens
-
Ergonomic Controls: Low-effort hand levers and foot throttle
-
Suspension Seat: Optional with lumbar support
-
Visibility: Large windows and rear escape window
-
Instrumentation: Digital hour meter, fuel gauge, warning lights
Attachments & Versatility
-
Compatible with a wide range of attachments:
-
Buckets (dirt, low-profile, light material)
-
Augers, trenchers, pallet forks, sweepers
-
-
Mechanical Attachment Coupler standard
-
Optional Hydraulic Quick Coupler for faster tool changes
Maintenance & Serviceability
-
Tilt-up ROPS for easy access to engine and hydraulics
-
Grouped Service Points for quick daily checks
-
Spin-on Filters
Shop Policies
Payment Policy
100% advance payment
Delivery Policy
Delivery options available pan India. For delivery beyond NCR Region, call 1800 203 6002
Refund Policy
Refund and cancellation policy as per website terms and conditions
Additional comments from Vendor
Food and accommodation for the operator will be provided by the contractor
