SANY STC800 CRANE*

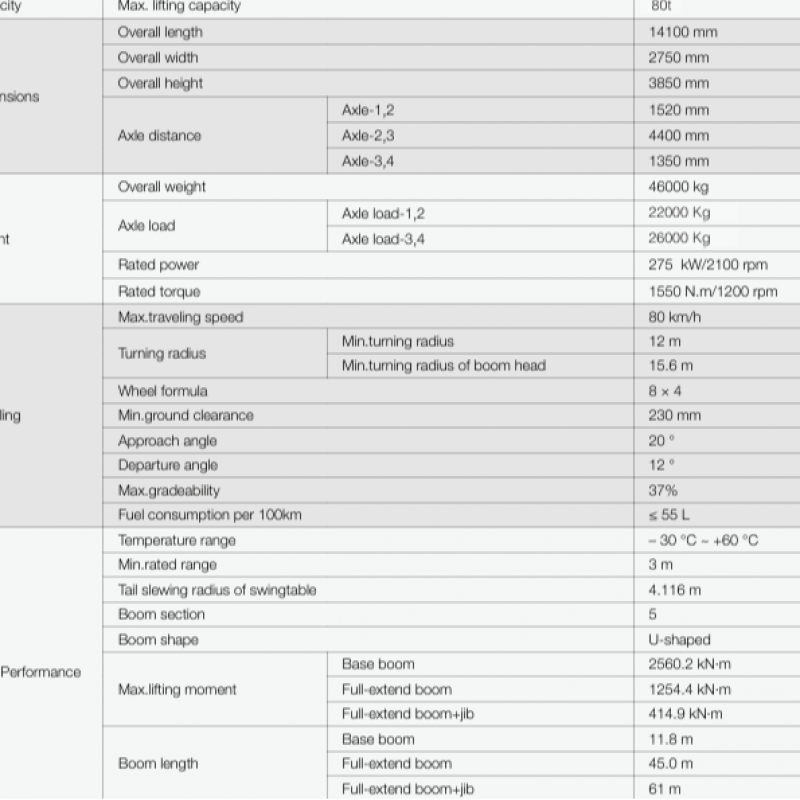

Description
-
Maximum Lifting Capacity: 80 Ton (80,000 kg) – ideal for medium to heavy-duty lifting operations.
-
Main Boom: 5-section U-shaped telescopic boom, extends from 11.8 m to 45 m.
-
Jib Extension (Optional): Up to 16 m, achieving max hook height of ~64.7 m.
-
Engine: Powered by Cummins diesel engine, delivering 275 kW (370 HP) and 1550 Nm torque.
-
Drive Configuration: 8×4 or 8×4×8 axle arrangement with robust road performance.
-
Travel Speed: Up to 80 km/h – fast mobilization between sites.
-
Hydraulic System: Advanced dual-pump load-sensing system with precise telescoping and luffing control.
-
Control System: Integrated CAN-bus electronics with fault diagnostics and user-friendly interface.
-
Outriggers: Four hydraulic outriggers with auto-leveling and dual-stage extension.
-
Slewing Speed: Smooth 360° rotation at 1.8–2.0 rpm with rotary buffer.
-
Turning Radius: Tight maneuverability with 10–12 m turning radius.
-
Gradeability: Can handle slopes of up to 37–40%, ideal for rugged job sites.
-
Fuel Efficiency: Fuel consumption in the range of 34–55 L/100 km, depending on terrain/load.
-
Safety Systems: Load Moment Indicator (LMI), overload alarms, and tipping protection.
-
Operator Cabin: Spacious, ergonomically designed, with full vision and electronic monitors.
-

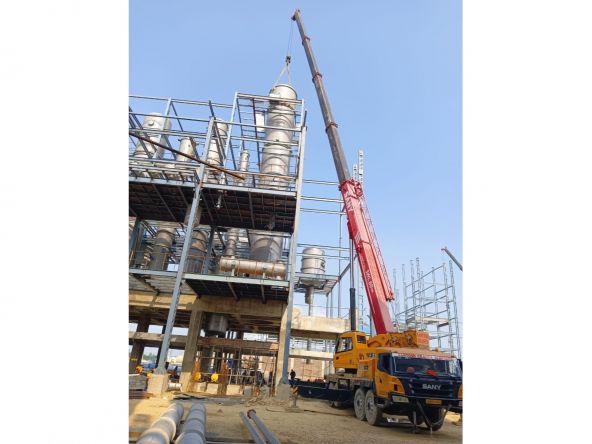

Applications: Suitable for bridge erection, wind turbine installation, industrial plant lifting, and infrastructure work.
Shop Policies
Payment Policy
50% advance for monthly rentals
Delivery Policy
Delivery charges extra
Refund Policy
Refund and cancellation as per platform policy
Additional comments from Vendor
An operator will accompany the crane, and the client shall provide accommodation and meals for the operator during the rental period.
