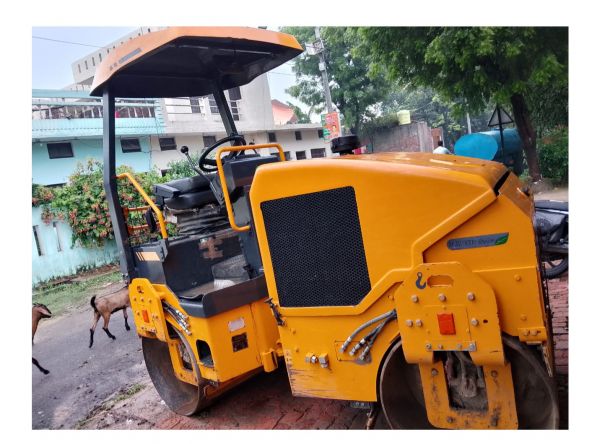

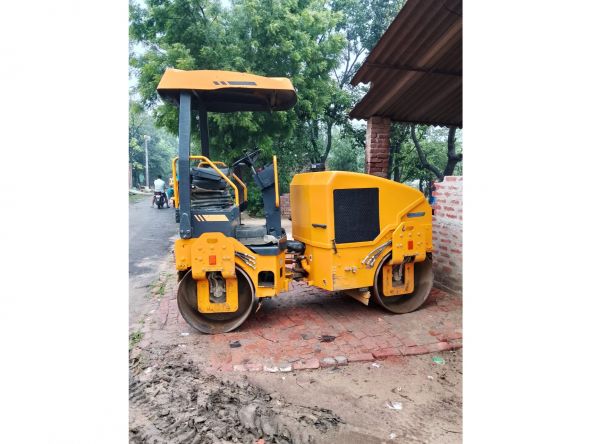

Mini tandem roller*
Description
Engine & Power
-
Engine Make: Escorts E3.249NA (3-cylinder, water-cooled diesel)
-
Power Output: 47 HP @ 2300 rpm
-
Emission Norms: BS-III (CEV compliant)
-
Fuel Tank Capacity: 50 liters
Drum & Vibration System
-
Drum Width: 1200 mm
-
Drum Diameter: 740 mm
-
Shell Thickness: 13 mm
-
Amplitude: 0.6 mm (single setting)
-
Frequency: 55 Hz (low) / 64 Hz (high)
-
Vibration Mode: Dual drum or front drum only, with auto cut-off above working speed
-
Max Applied Force:
-
Front Drum: 6100 kgf
-
Rear Drum: 5900 kgf
-
Performance & Maneuverability
-
Operating Weight: 3300 kg
-
Static Linear Load:
-
Front: 14.2 kg/cm
-
Rear: 13.3 kg/cm
-
-
Gradeability:
-
With Vibration: 35%
-
Without Vibration: 40%
-
-
Travel Speed: 0–12 km/h
-
Working Speed: 0–5 km/h
-
Turning Radius:
-
Inner: 2942 mm
-
Outer: 4142 mm
-
-
Oscillation Angle: ±10°
-
Crab Steering: ±48°
Dimensions
-
Overall Length: 2826 mm
-
Overall Width: 1360 mm
-
Overall Height (with canopy): 2595 mm
-
Ground Clearance: 320 mm
-
Wheelbase: 1884 mm
-
Kerb Clearance: 590 mm
Hydraulics & Tanks
-
Hydraulic Oil Tank: 40 liters
-
Water Tank: 200 liters (Front: 70 L / Rear: 130 L)
Safety & Operator Features
-
Brakes: Hydrostatic service brakes; spring-loaded, hydraulically released parking & emergency brakes
-
Driver Seat: Adjustable and sliding with canopy
-
Instrument Panel: Includes hour meter, fuel gauge, vibration selector, and warning indicators
-
Safety Systems:
-
Neutral start interlock
-
Emergency stop switch
-
Reverse alarm
-
Filter clog indicators
-
Coolant and hydraulic temperature gauges
-
Key Highlights
-
Designed for shoulder compaction, service roads, and tight urban spaces
-
High static linear load for effective compaction
-
Low turning radius and high kerb clearance for maneuverability near culverts
-
3-stage water sprinkling system with drum scrapers for clean operation
