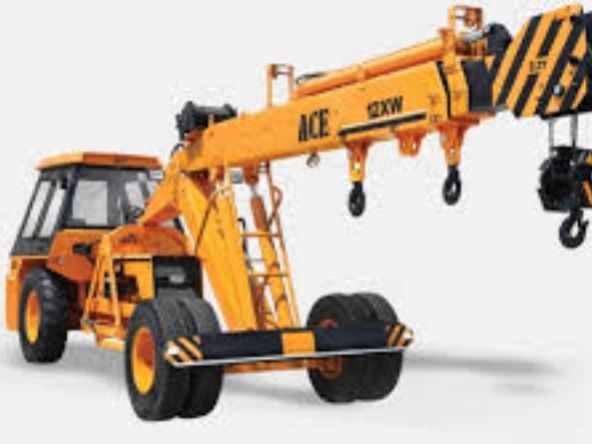

Hydra 12 Ton ACE 12XW*
Description
Key Specifications
-
Lifting Capacity: 12 tons (free on wheels)
-
Boom Height: Up to 12.9 meters
-
Engine Power: 47.5 HP (Mahindra 4485 IAE engine) at 2200 RPM
-
Transmission: 6 forward + 2 reverse gears with high-low range selector
-
Top Speed: 28 km/h without load
-
Operating Weight: Approx. 9,250 kg
Mechanical Features
-
Clutch: Heavy-duty, single dry friction clutch with diaphragm-type pressure plate
-
Brakes: Pneumatically assisted hydraulic brakes; single pedal operation for front and rear
-
Steering: Hydraulic power steering with 55° articulation and 6.5 m turning radius
-
Hydraulic System: Gear/intra vane type pump with four-spool control valve and double-acting cylinders
Structural & Functional Design
-
Boom Type: Two-part telescopic boom with hydraulic extension (12-second extension time)
-
Hoisting System: Hydraulic motor-driven winch with 4-fall 13 mm rope; hoist speed up to 50 m/min
-
Cabin: ROPS fully enclosed wide-view cabin with ergonomic controls and visibility enhancements
Electrical & Safety
-
Electrical System: 12V negative earth with 35A alternator and 75Ah battery
-
Safety Features:
-
Audio overload and over-hoisting indicators
-
Hydraulic cut-off for over-hoisting
-
Cylinder guards and safety brakes on hoist
-
Standard Equipment
-
Tool kit, work lights, rear-view mirrors, reflectors
-
Gauges for water temperature, oil pressure, and RPM
Applications
-
Widely used in construction, infrastructure, and industrial maintenance for:
-
Loading and unloading
-
Material shifting and erection
-
Shop Policies
Payment Policy
100% advance
Delivery Policy
Delivery Charges extra as per distance
Refund Policy
As per Platform Refund Policy
Additional comments from Vendor
Operator will work for 8 hours in a day with one hour of lunch break
