Concrete Pump Schwing Stetter SP1807*
Description

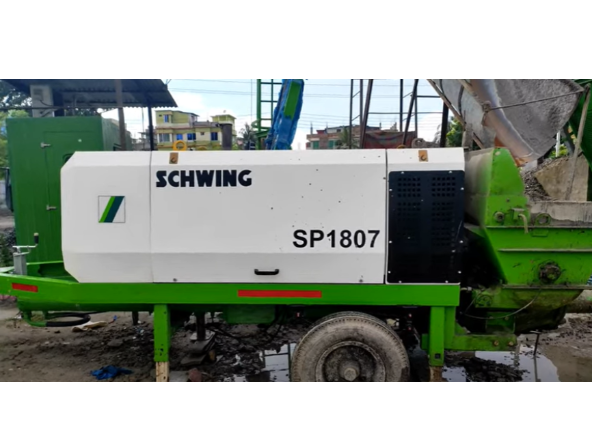

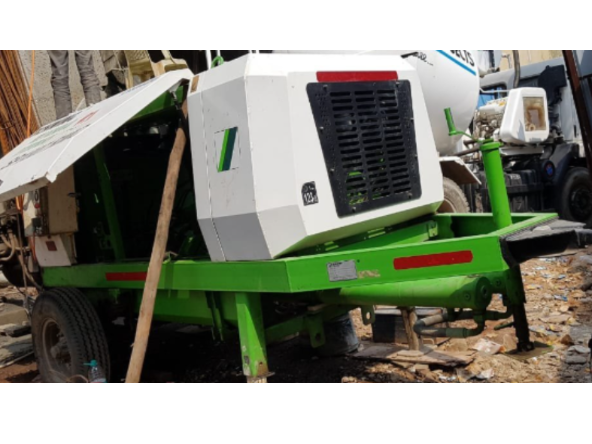

The Schwing Stetter SP 1807 is a stationary concrete pump primarily designed for handling long horizontal and vertical concrete pumping requirements. It is well-suited for diverse construction projects such as high-rise buildings, tunnels, dams, and metro construction.

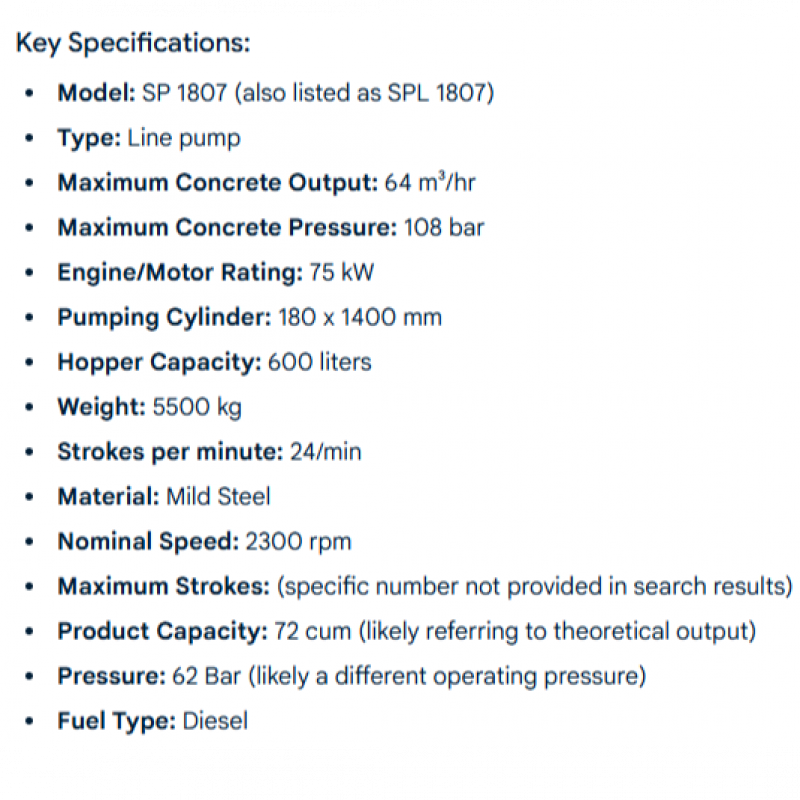

Here are some key specifications for the Schwing Stetter SP 1807:
- Engine Power: 75 kW
- Fuel Type: Diesel
- Nominal Engine Speed: 2300 rpm
- Concrete Cylinder Diameter x Stroke: 200 x 1400 mm
- Hopper Capacity: 600 liters
- Maximum Concrete Output:
- Piston side: 41 m³/hr
- Rod side: 72 m³/hr
- Maximum Concrete Pressure:
- Piston side: 112 bar
- Rod side: 62 bar
- Maximum Strokes per Minute:
- Piston side: 16 strokes/min
- Rod side: 27 strokes/min
- Weight:
- Approx. 4500-4600 kg.

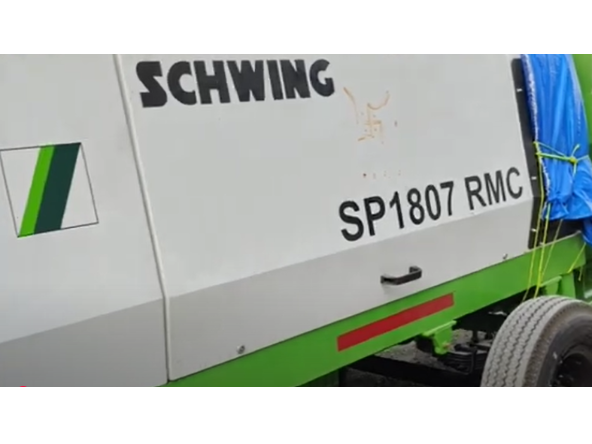

- Some sources list slightly different weights (e.g. 4530 kg, 5500 kg). These variations might reflect different configurations or models (e.g., SPL 1807 versus SP 1807 RMC).
