Boom Placer Schwing Stetter S 36X*
Description

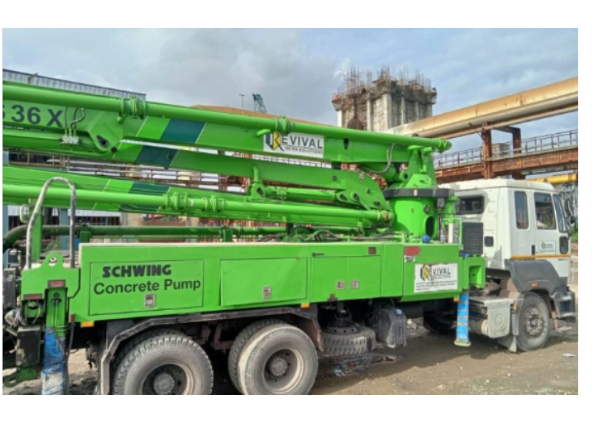

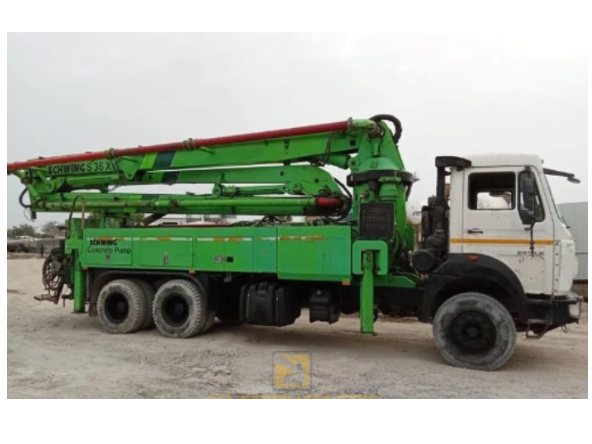

The SCHWING Stetter S 36 X is a truck-mounted concrete boom pump designed for efficient concrete placement, particularly suitable for high-rise projects.

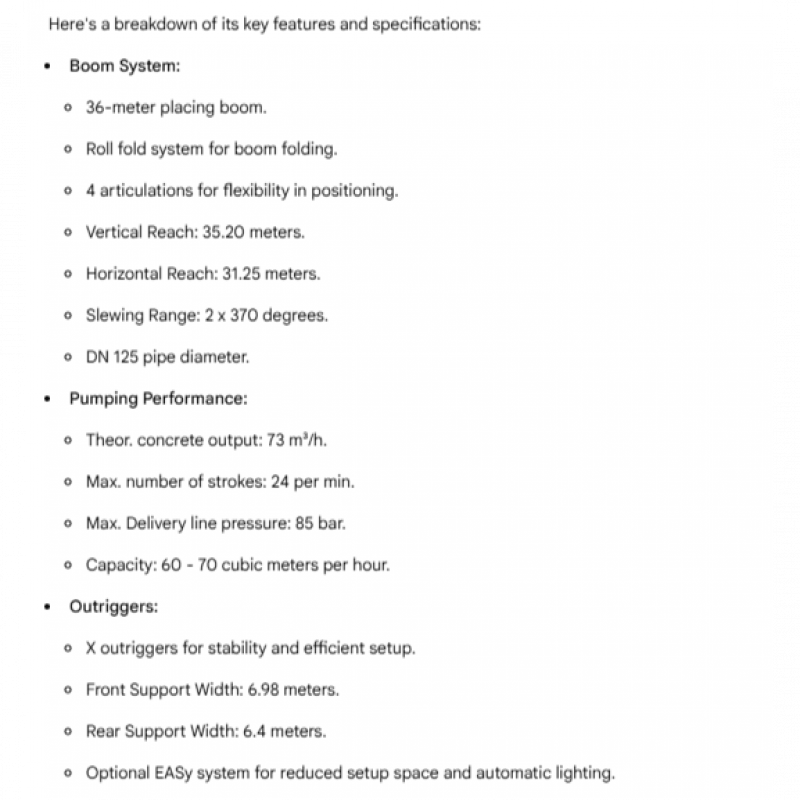

Here's a breakdown of its key features and specifications:
- Boom System:
- 36-meter placing boom.
- Roll fold system for boom folding.
- 4 articulations for flexibility in positioning.
- Vertical Reach: 35.20 meters.
- Horizontal Reach: 31.25 meters.
- Slewing Range: 2 x 370 degrees.
- DN 125 pipe diameter.
- Pumping Performance:
- Theor. concrete output: 73 m³/h.
- Max. number of strokes: 24 per min.
- Max. Delivery line pressure: 85 bar.
- Capacity: 60 - 70 cubic meters per hour.
- Outriggers:
- X outriggers for stability and efficient setup.
- Front Support Width: 6.98 meters.
- Rear Support Width: 6.4 meters.
- Optional EASy system for reduced setup space and automatic lighting.
