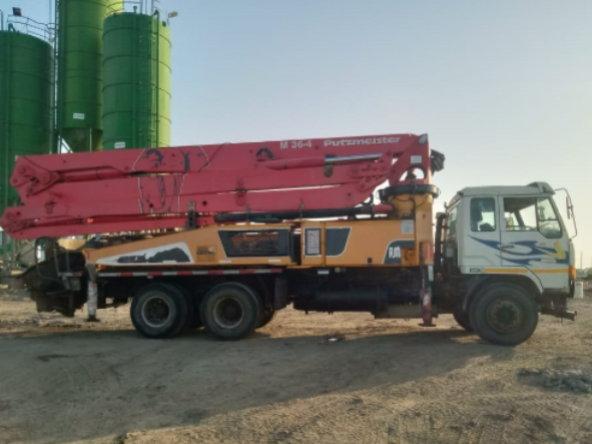

Boom Placer Putzmeister M36-4*
Description

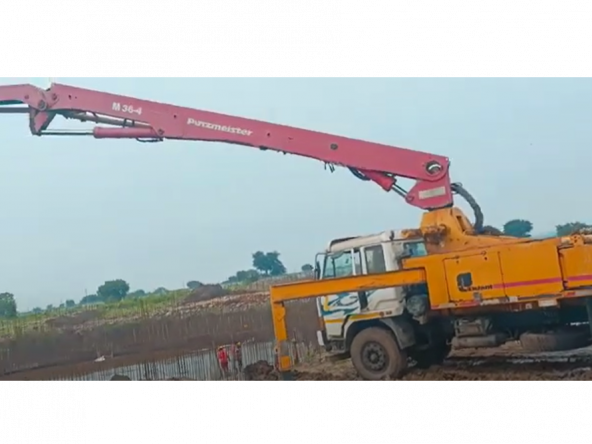

The Putzmeister M36-4 is a versatile and efficient truck-mounted concrete pump known for its compact design and powerful performance.

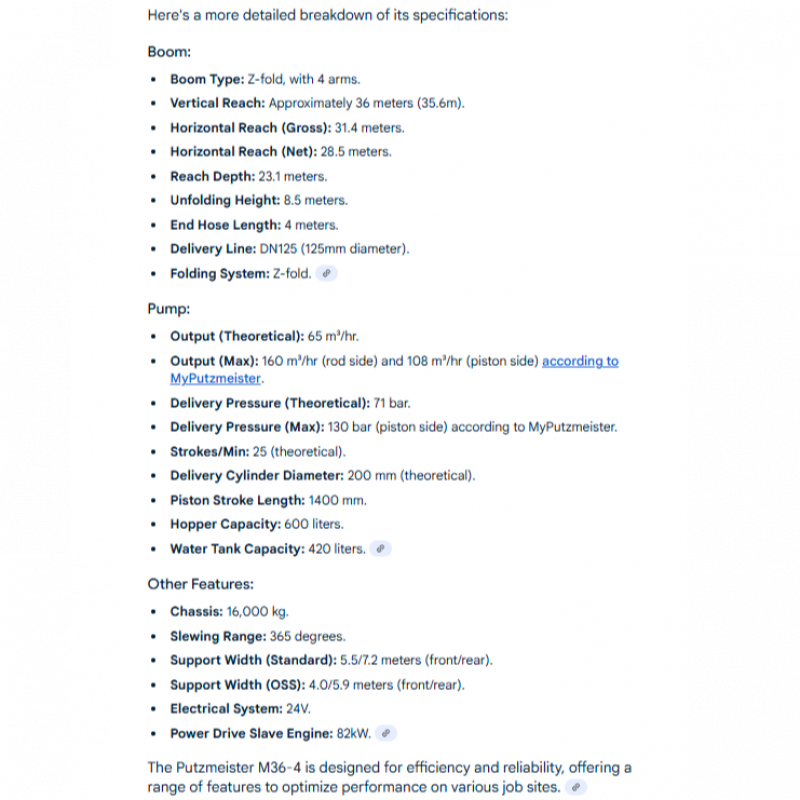

Here's a breakdown of its key specifications:
Boom
- Reach Height (Vertical): 35.6 m (around 36 meters).
- Horizontal Reach:
- Gross: 31.4 m
- Net: 28.5 m
- Reach Depth (Max): 23.1 m.
- Unfolding Height: 8.5 m.
- Number of Sections: 4.
- Folding System: Z-fold.
- End Hose Length (Max): 4 m.
- Delivery Line Diameter: 125 mm.
Pump
- Output (Rod Side): 160 m³/h.
- Delivery Pressure (Rod Side): 85 bar.
- Strokes (Rod Side): 31/min.
- Output (Piston Side): 108 m³/h - 170 m³/h.
- Delivery Pressure (Piston Side): 130 bar - 85 bar.
- Strokes (Piston Side): 21/min - 27/min.
- Delivery Cylinder Diameter: 230 mm or 250 mm.
- Piston Stroke Length: 2100 mm.
Other Features
- Chassis Allowable GVW: 16000 Kg.
- Electrical System: 24 V.
- Power Drive Slave Engine: 82 kW.
- Hopper Capacity: 600 L.
- Water Tank Capacity: 420 L.
- Total Weight (Approx.): Under 32000 kg.
- Support Width:
- OSS (front-rear): 4.0/5.9 m.
- ESC (front-rear): 4.0/5.1 m.
The M36-4 is particularly well-suited for a variety of applications due to its flexibility and compact design, including:
- High-rise construction.
- Bridges and underpasses.
- Indoor projects with limited space.
- Working in low buildings.
