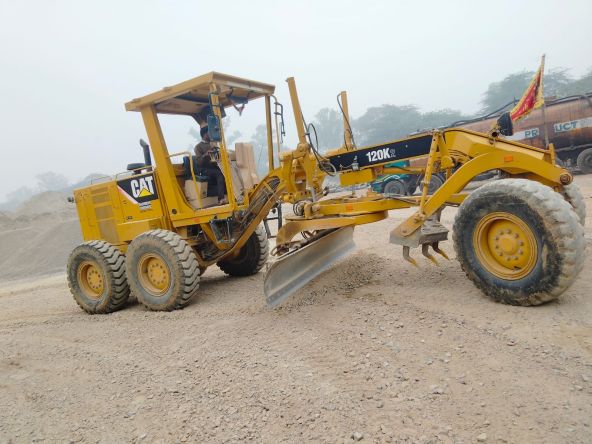

CAT Motor Grader 125HP*
Description
Engine & Performance
-
Powered by a CAT C7 ACERT engine delivering up to 125 HP.
-
Complies with Tier 3 / Bharat Stage III emission standards.
-
Features Electronic Throttle Control for precise speed and fuel efficiency.
-
Top forward speed: 47.5 km/h; Top reverse speed: 23 km/h.
Moldboard (Blade) Dimensions
-
Width: 3.7 meters (12 feet)
-
Height: Approximately 610 mm (24 inches)
-
Arc Radius: 413 mm
-
Throat Clearance: 115 mm
Transmission & Powertrain
Width: 3.7 meters (12 feet)
Height: Approximately 610 mm (24 inches)
Arc Radius: 413 mm
Throat Clearance: 115 mm
-
Equipped with a direct-drive power shift transmission for smooth gear changes.
-
Load-sensing hydraulics ensure consistent blade control and reduced power loss.
-
Oil-disc brakes at each tandem wheel for reliable stopping power.
Structure & Build
-
Operating weight: Approx. 14,340 kg.
-
Length: 8,265 mm; Turning radius: 7.3 m.
-
Moldboard width: 3.7 m (12 ft), with optional extensions.
-
Heavy-duty drawbar, circle, and moldboard designed for durability and high stress loads.
Shop Policies
Payment Policy
100% advance payment
Delivery Policy
Delivery options available pan India. For delivery beyond NCR Region, call 1800 203 6002
Refund Policy
Refund and cancellation policy as per website terms and conditions
Additional comments from Vendor
Operator of machine will be provided by our site but the food and accommodation for the operator will be provided by the contractor
