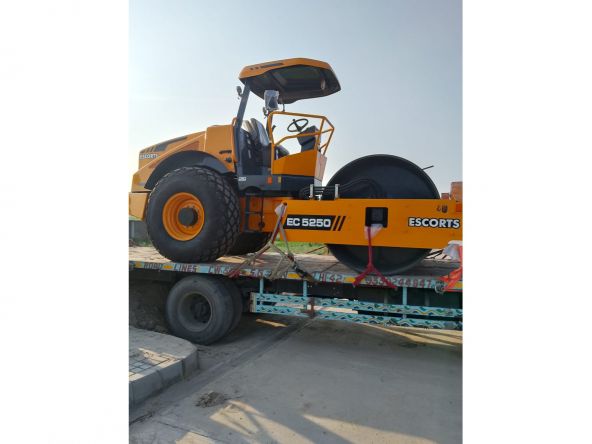

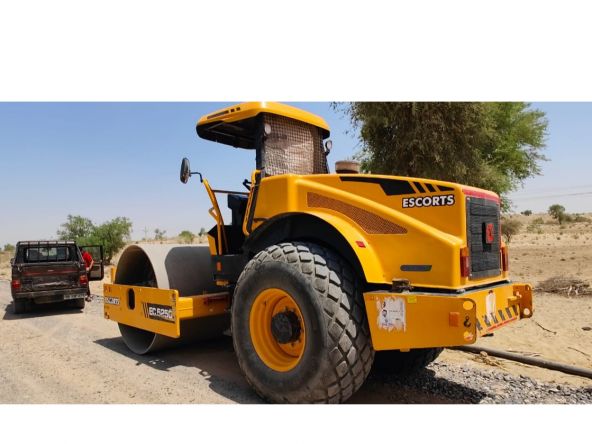

Compact Roller*
Description
Engine & Power
-
Engine Make: KOEL 4R1190TA1
-
Power Output: 110 HP @ 2200 rpm
-
Emission Compliance: CEV Stage-IV
-
Fuel Tank Capacity: 265 liters for extended operation
-
Performance & Capabilities
-
Operating Weight: 10,350–11,950 kg (depending on configuration)
-
Gradeability: 40–55% (excellent for slopes and uneven terrain)
-
Max Travel Speed: 23 km/h
-
Turning Radius: 3,370–5,500 mm for tight maneuvering
-
Oscillation Angle: 10°
Drum & Vibration System
-
Drum Width: 2,130 mm
-
Drum Diameter: 1,523–1,739 mm
-
Drum Thickness: 25 mm
-
High Amplitude: 1.3–1.72 mm
-
Low Amplitude: 0.5–0.8 mm
-
Frequency: 30 Hz (both high and low)
-
Centrifugal Force:
-
High Frequency: 21,492 kg
-
Low Frequency: 9,046 kg
-
Build & Dimensions
-
Overall Length: 5,460 mm
-
Overall Width: 2,275 mm
-
Overall Height: 3,045–3,095 mm
-
Ground Clearance: 435–485 mm
-
Wheelbase: 2,880 mm
Safety & Operator Features
-
Emergency Brake Switch for quick stops
-
Hydrostatic Braking System (spring-applied, hydraulically released)
-
Air & Hydraulic Filter Clog Indicators
-
Coolant Temperature Gauge for real-time engine monitoring
Additional Highlights
-
Hydraulic Tank Capacity: 80 liters
-
Static Linear Load: 23.7–24.6 kg/cm (front & rear)
-
Canopy with Sun Top, cushioned seat, and ergonomic controls for operator comfort
Shop Policies
Payment Policy
100% advance payment
Delivery Policy
Delivery options available pan India. For delivery beyond NCR Region, call 1800 203 6002
Refund Policy
Refund and cancellation policy as per website terms and conditions
Additional comments from Vendor
Food and accommodation for the operator will be provided by the contractor
